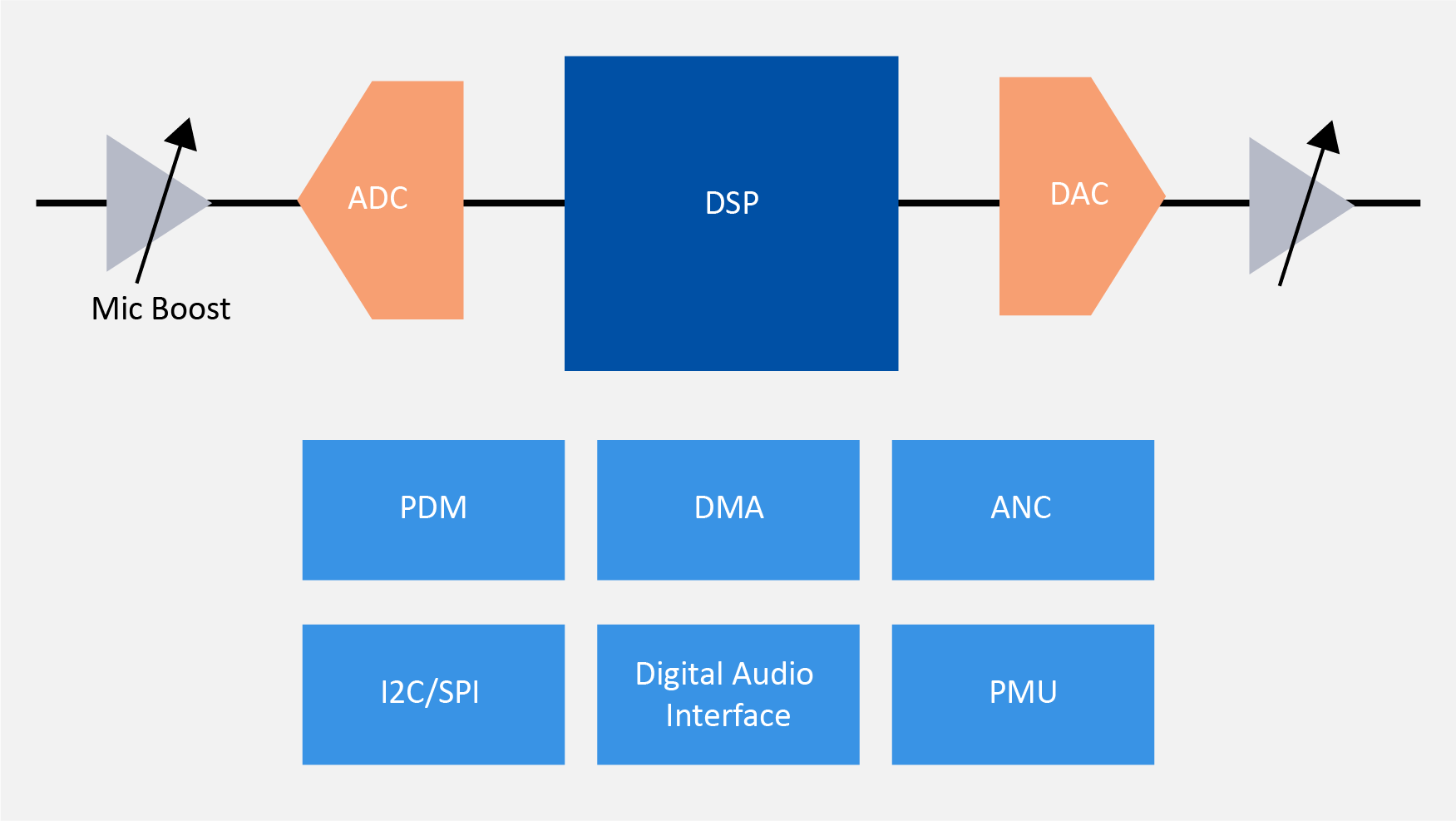

GC1219 Block Diagram

The GC1219 device has combined Goodix’s high-fidelity, high-efficiency hardware audio codec with integrated high performance DSP. The GC1219 sets a new benchmark for its flexibility, ease-of-use, performance, and energy efficiency.

The GC1219 has integrated 2 stereo (4 inputs) Analog-to-Digital Converters (ADCs) and a stereo Digital-to-Analog Converter (DAC) with a capless headphone driver. This chip is an ideal smart codec for a number of battery-powered wireless audio applications, like Bluetooth True Wireless Stereo (TWS) headset, Bluetooth stereo headset, and voice trigger applications.

GC1219 Block Diagram

Key Features

  • High Processing Capacity

    • Integrated high performance DSP for computing intensive programs

    • Reference code includes AAC / MP3 / SBC decoding and mSBC / CVSD / LC3 encoding / decoding

  • Low Power Features

    • Multiple power domains and modes support users to shut down DSP or audio codec blocks for maximum power saving

    • Configurable retention or shutdown mode on each memory instance

    • Deep sleep mode with external wakeup pins

    • Standby mode with code and state retention at minimum power

  • Audio Codec

    • Up to 96 ksps / 24 bit Stereo PCM playback, and up to 48 ksps / 24-bit 8-channel PCM recording

    • PEQ

    • Hybrid ANC support

    • Up to 4 * AMIC + 4 * DMIC (PDM) input

  • Serial Audio Interface

    • Supports standard I2S / Left-justified mode up to 2-ch TX (downlink) + 2-ch RX (uplink), in 16, 24, and 32 bit format

    • Supports TDM mode up to 2-ch TX (downlink) + 8-ch RX (uplink), in 16, 24, and 32 bit format

  • VPU Interface

  • Clock and Reset

    • Embedded 16 MHz XTAL OSC

    • Fractional-N Audio PLL with 1 PPM fine-tune in ±16 kHz range

    • Integer-N General Purpose PLL (VCO 10 MHz to 130 MHz configurable)

    • External reference clock input (2 MHz typical)

    • 24 MHz RC OSC for always-listening

    • WWDT / 32 kHz RC OSC for sleep mode

  • Power Supply

    • 1.8 V external main power supply

    • 0.9 V to 1.1 V digital core supply
