GR551x Series

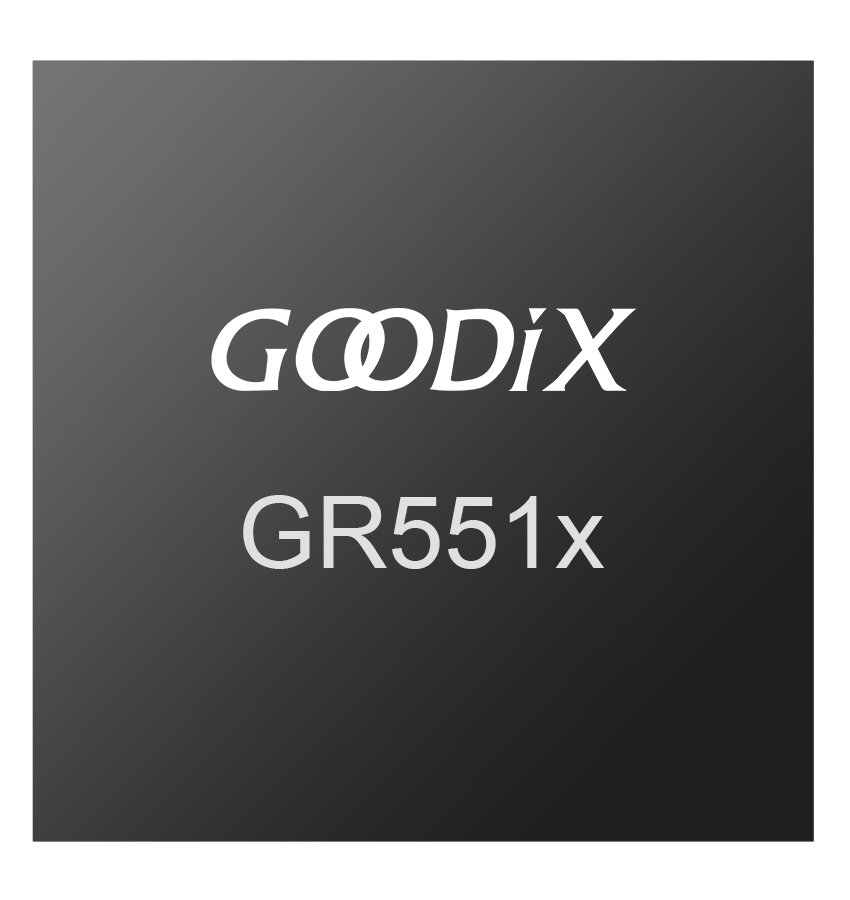

GR551x

The Goodix GR551x family is a single-mode, low-power Bluetooth 5.1 System-on-Chip (SoC). It can be configured as a Broadcaster, an Observer, a Central, a Peripheral, and supports the combination of all the above roles, making it an ideal choice for Internet of Things (IoT) and smart wearable devices.

Based on ARM® Cortex®-M4F CPU core, the GR551x integrates Bluetooth 5.1 Protocol Stack, a 2.4 GHz RF transceiver, on-chip programmable Flash memory, RAM, and multiple peripherals.

The GR551x SDK is the software development kit for the GR551x SoC, offering a complete solution that integrates the protocol stacks, application samples and hardware drivers.

The GR5515 Starter Kit is the development kit for the GR551x SoC, and has everything needed for development on a single board.

The PLT Lite is the MP tool for the GR551x SoC.

GR551x

Key Features

  • Bluetooth 5.1 transceiver integrates Controller and Host layers

    • Support these data transmission rates: 1 Mbps, 2 Mbps, LR (500 kbps, 125 kbps)

    • TX power: -20 dBm ~ +7 dBm

    • -97 dBm reception sensitivity (under the 1 Mbps mode)

    • -93 dBm reception sensitivity (under the 2 Mbps mode)

    • -99.5 dBm reception sensitivity (under the LR 500 kbps mode)

    • -103 dBm reception sensitivity (under the LR 125 kbps mode)

    • TX current: 3.05 mA @ 0 dBm,1 Mbps

    • RX current: 3.9 mA @ 1 Mbps

  • Built-in ARM® Cortex®-M4F 32-bit micro-processor, supporting floating-point operation

    • Maximum frequency: 64 MHz

    • Power consumption: 30 μA/MHz

  • Memory

    • Flash Configurations for GR5515 series

      • GR5515I0ND/GR5515I0NDA: no embedded Flash

      • GR5515IENDU: embedded with 512 KB Flash

      • All other SoCs: embedded with 1 MB flash

    • Flash Configurations for GR5513 series

      • GR5513 series: embedded with 512 KB Flash

  • Power Management

    • On-chip DC-DC Converter

    • On-chip I/O LDO to provide I/O voltage and supply external components

    • Supply voltage: 1.7 V to 3.8 V

    • I/O voltage: 1.8 V to 3.3 V

    • OFF mode: 0.15 µA (Typical), chip in reset

    • Ultra deep sleep mode: 0.65 µA (Typical), I/O LDO off and no memory retention

    • Sleep mode: 1.3 µA (Typical), I/O LDO, BOD and BOD2 off, 32 KB memory retention

  • Peripherals

    • 2 QSPI interfaces, up to 32 MHz

    • 2 SPI interfaces (1 SPI Master Interface with 2 Slave CS pins + 1 SPI Slave Interface), up to 32 MHz

    • 2 I2C interfaces (Supports 100 kHz, 400 kHz, 1 MHz, 2 MHz)

    • 2 I2S interfaces (1 I2S Master Interface + 1 I2S Slave Interface)

    • 2 UART interfaces (One with DMA channel)

    • 13-bit ADC, up to 1 Msps, 8 channels (5 external test channels and 3 internal signal channels), supporting both single-ended and differential inputs

    • ISO 7816 interface

    • 6 channel PWM output

    • Built-in temperature and voltage sensors

    • 4 hardware timers

    • 1 AON hardware timer

    • 2 watchdog timers (one for the system and one is always-on)

    • Calendar timer

    • Wake-up comparator

    • Supports up to 39 multiplexed GPIO pins

  • Security

    • Complete secure computing engine:

      • AES 128-bit/192-bit/256-bit encryption (ECB and CBC)

      • Keyed Hash Message Authentication Code(HMAC)

      • PKC

      • TRNG

    • Comprehensive security operation mechanism:

      • Secure boot

      • Encrypted firmware runs directly from Flash

      • Fuse for encrypted key storage

      • Differentiate application data key and firmware key, supporting one data per device/product

  • Packages

    • QFN56: 7 mm * 7 mm

    • BGA68: 5.3 mm * 5.3 mm

    • BGA55: 3.5 mm * 3.5 mm

    • QFN40: 5 mm * 5 mm

  • Operating temperature range: -40°C to +85°C

Read More

Product Details

The GR551x series provides a variety of package types to support the needs of diversified scenarios.

Download Comparison Table



GR5515IGND

GR5515I0NDA

GR5515IENDU

GR5515GGBD

GR5515RGBD

GR5513BENDU

GR5513BEND

Status

Active

Active

Active

Active

NRND

Active

NRND

Protocol

Bluetooth@ LE[1]

5.1

5.1

5.1

5.1

5.1

5.1

5.1

Bluetooth@ Mesh

Core System

CPU

Cortex®-M4F

Cortex®-M4F

Cortex®-M4F

Cortex®-M4F

Cortex®-M4F

Cortex®-M4F

Cortex®-M4F

Clocks

64 MHz / 32K Hz

64 MHz / 32 KHz

64 MHz / 32 KHz

64 MHz / 32 KHz

64 MHz / 32 KHz

64 MHz / 32 KHz

64 MHz / 32 KHz

Cache

8 KB

8 KB

8 KB

8 KB

8 KB

8 KB

8 KB

RAM

256 KB

256 KB

256 KB

256 KB

256 KB

128 KB

128 KB

OTP











Flash

1 MB

External Flash

512 KB

1 MB

1 MB

512 KB

512 KB

Security

Root of Trust

Secure Key Store

4

4

4

4

4

4

4

PKC

RSA

AES

ECC

TRNG

Radio

Frequency

2.4 GHz

2.4 GHz

2.4 GHz

2.4 GHz

2.4 GHz

2.4 GHz

2.4 GHz

Maximum Tx Power

7 dBm

7 dBm

7 dBm

7 dBm

7 dBm

7 dBm

7 dBm

Rx Sensitivity

-97 dBm(@1Mbps)

-97 dBm(@1Mbps)

-97 dBm(@1Mbps)

-97 dBm(@1Mbps)

-97 dBm(@1Mbps)

-97 dBm(@1Mbps)

-97 dBm(@1Mbps)

Peripheral

UART

2

2

2

2

2

2

2

SPI

1 * SPIM / 1 * SPIS

1 * SPIM / 1 * SPIS

1 * SPIM / 1 * SPIS

1 * SPIM / 1 * SPIS

1 * SPIM / 1 * SPIS

1 * SPIM / 1 * SPIS

1 * SPIM / 1 * SPIS

I2C

2

2

2

2

2

2

2

QSPI

2

2

2

2

2

2

2

Timers

5

5

5

5

5

5

5

PWM

6

6

6

6

6

6

6

RTC

1

1

1

1

1

1

1

I2S

1 * I2SM / 1 * I2SS

1 * I2SM / 1 * I2SS

1 * I2SM / 1 * I2SS

1 * I2SM / 1 * I2SS

1 * I2SM / 1 * I2SS

1 * I2SM / 1 * I2SS

1 * I2SM / 1 * I2SS

ADC

13-bit

13-bit

13-bit

13-bit

13-bit

13-bit

13-bit

Comparator

Temperature Sensor

GPIO

39

39

39

29

39

22

22

Packages

Type

Dimensions

QFN56
7.0 * 7.0 mm

QFN56
7.0 * 7.0 mm

QFN56
7.0 * 7.0 mm

BGA55
3.5 *3.5 mm

BGA68
5.3 * 5.3 mm

QFN40
5.0 * 5.0 mm

QFN40
5.0 * 5.0 mm

Certification

PSA Level 1

SIG BQB (QDID: 119449)

Operating Temperature

-40℃ - 85℃

-40℃ - 85℃

-40℃ - 85℃

-40℃ - 85℃

-40℃ - 85℃

-40℃ - 85℃

-40℃ - 85℃

Supply Voltage Range

1.7 V - 3.8 V

1.7 V - 3.8 V

1.7 V - 3.8 V

1.7 V - 3.8 V

1.7 V - 3.8 V

1.7 V - 3.8 V

1.7 V - 3.8 V

Development Kits

GR5515 Starter Kit

GR5515 Starter Kit

GR5515 Starter Kit

GR5515 Starter Kit

GR5515 Starter Kit

GR5515 Starter Kit

GR5515 Starter Kit

Notes:

[1] 1M-PHY, 2M-PHY, Long Range supported by default.

Hardware

GR5515 Starter Kit

GR5515 Starter Kit (GR5515 SK) helps users quickly get started with project evaluation, development, debugging, and performance verification when GR551x series SoCs are used.

Read More

PLT Lite

PLT Lite is for programming GR551x series SoCs in mass production.

Read More

Software & Tools

GR551x SDK

Software development kit (SDK) for GR551x series
Read More

GProgrammer for BLE

A firmware programming tool for GR551x series
Read More

GRToolbox

A mobile APP customized for Goodix Bluetooth Low Energy products
Read More

GRPLT Lite Config Tool

A configuration tool for PLT Lite
Read More

GRUart

A PC tool for debugging serial ports
Read More

Documentation

Name Rights Description Version Date
GR551x Datasheet For Public Rev.2.4 2022-04-15
GR551x Datasheet Brief For Public Rev.1.9 2022-04-15
Bluetooth LE Getting Started For Public Rev.2.0 2022-08-24
GRPLT Lite Config Tool User Manual For Public V1.3 2022-06-24
GRPLT Lite Config Tool Customized Firmware Encryption Application Note For Public V1.2 2022-06-24
GR551x APP Log Application Note For Public Rev.1.0 2022-05-10
GR551x Power Consumption Profile Example Application For Public Rev.2.2 2022-04-15
GR551x Fault Trace Module Application Note For Public Rev.2.0 2022-04-15
GR551x ANCS Profile Example Application For Public Rev.1.9 2022-04-15
GR551x Bluetooth Low Energy Throughput Example Application For Public Rev.2.2 2022-04-15
GR551x Bluetooth Low Energy Examples Application Manual For Public Rev.1.9 2022-04-15
GR551x HID Mouse Example Application For Public Rev.1.9 2022-04-15
GR551x Peripheral Examples Application Manual For Public Rev.1.9 2022-04-15
GR551x OTA Example Application For Public Rev.2.1 2022-04-15
GR5515 Starter Kit User Guide For Public Rev.1.8 2022-04-15
GR551x DFU Application Note For Public Rev.1.9 2022-04-15
GR551x Hardware Design Guidelines For Public Rev.2.3 2022-04-15
GR551x Second Boot Example Application For Public Rev.1.9 2022-04-15
GR551x DTM Test Application Note For Public Rev.2.0 2022-04-15
GR551x AT Command Profile Example Application For Public Rev.1.3 2022-04-15
GProgrammer User Manual For Public Rev.2.5 2022-04-15
GR551x Fast DFU Example Application For Public Rev.1.8 2022-04-15
GR551x Sleep Mode and Power Consumption Measurement Application Note For Public Rev.1.9 2022-04-15
GR551x FreeRTOS Example Application For Public Rev.2.0 2022-04-15
GR551x AMS Profile Example Application For Public Rev.1.9 2022-04-15
GR551x Sample Service Application and Customization For Public Rev.2.0 2022-04-15
GR551x HRS RSCS Relay Example Application For Public Rev.2.1 2022-04-15
GR551x Bluetooth Low Energy Stack User Guide For Public Rev.1.9 2022-04-15
GR551x Developer Guide For Public Rev.2.5 2022-04-15
GR551x Serial Port Profile Example Application For Public Rev.2.0 2022-04-15
GR551x Firmware Encryption Application Note For Public Rev.2.0 2022-04-15
GR551x Device Synchronization Profile Example Application For Public Rev.1.3 2022-04-15
GR551x IAR User Manual For Public Rev.1.3 2022-04-15
GR551x GCC User Manual For Public Rev.2.1 2022-04-15
GR551x API Reference For Public Rev.1.7.0 2022-04-15
GR551x Errata Note For Public Rev.1.1 2021-12-01
GR5515I0ND Series Flash Selection Guide For Public Rev.1.2 2021-12-01
GR551x HAL and LL Drivers User Manual For Public Rev.1.8 2021-07-30
GR5515 SK BASIC RevE For Public Rev.1.5 2021-05-16
