GR851x Series
GR851x Block Diagram

The GR851x family is a System-on-Chip (SoC) that integrates a powerful application and security subsystem with NB-IoT cellular communication functionality. It features ultra-low power consumption, high communication reliability, and outstanding application scalability. Based on ARM® Cortex®-M4F CPU core, GR851x integrates an RF transceiver covering both low band (LB) and high band (HB), packaged with programmable Flash memory, RAM, and multiple peripherals. Prepared to support NB-IoT Rel-15, it is an ideal choice for a vast variety of Internet of Things (IoT) application scenarios, including smart meters, asset management, smoke detectors, smart bands, and others.

GR851x Block Diagram

Key Features

  • Application Processor (AP) Sub-system

    • Cortex®-M4F based scalable core clock: 3.25 MHz ~ 69.3 MHz

    • AP is independent from CP and is able to reset CP

    • Up to 128 KB SRAM dedicated for OpenCPU application

    • Up to 4 MB Flash with XIP

    • DFOTA

    • Peripherals, up to 61 IOs

      • Low-power UART

      • 2 * I2S, 2 * I2C, 2 * UART, 1 * ISO7816, 2 * SPI, and 1 * QSPI

      • 5 * 13-bit ADC

      • 6-channel PWM

      • 8-channel DMA

      • Timer / Dual timer

      • SWD

    • Communication Processing (CP) Sub-system

      • 3GPP Rel-14 supports:

        • Multi-Carrier support enhancement (NPRACH, Paging)

        • Cat-NB2 and two HARQ processes

        • CP re-establishment

        • AS and NAS release assistance indication

        • Rel-14 positioning: OTDOA and E-CID

        • DL channel quality reporting

      • 3GPP Rel-15 supports:

        • NB-IoT wake-up signal (NWUS)

        • Dedicated PRACH SR

        • SR in HARQ ACK

        • RRC connection release without RLC AM poll

        • Relaxed monitoring for cell reselection

        • Power headroom reporting enhancement

      • Global bands support: 1, 2, 3, 4, 5, 8, 11, 12, 13, 14, 17, 18, 20, 25, 26, 28, 66, 70, 71, 74, 85

      • DFOTA

  • Power Management

    • Wide range voltage input: 1.85 V ~ 4.35 V

    • Power consumption: 35 µA / MHz

    • I/O voltage: 1.6 V ~ 3.6 V

    • Integrated power supply for PA / FEM

    • BoD

    • Power-saving mode (PSM), Idle mode

  • Security

    • Complete secure computing engine

      • AES 128-bit / 192-bit / 256-bit symmetric encryption (ECB, CBC, CTR)

      • Keyed-hash message authentication code (HMAC)

      • TRNG

    • Comprehensive security operation mechanism

      • Root-of-Trust

      • Secure boot

      • Encrypted firmware runs directly from Flash

      • Flexible encrypted key system

  • Packages

    • BGA121L: 5.6 mm * 5.6 mm * 0.88 mm, 0.5 mm pitch

    • QFN58L: 6 mm * 6 mm * 0.75 mm, 0.35 mm pitch, 4-layer PCB supported

  • Certification (Silicon): China Mobile, China Telecom, Deutsche Telekom

Read More

Hardware Resources

GR851x Pro Kit

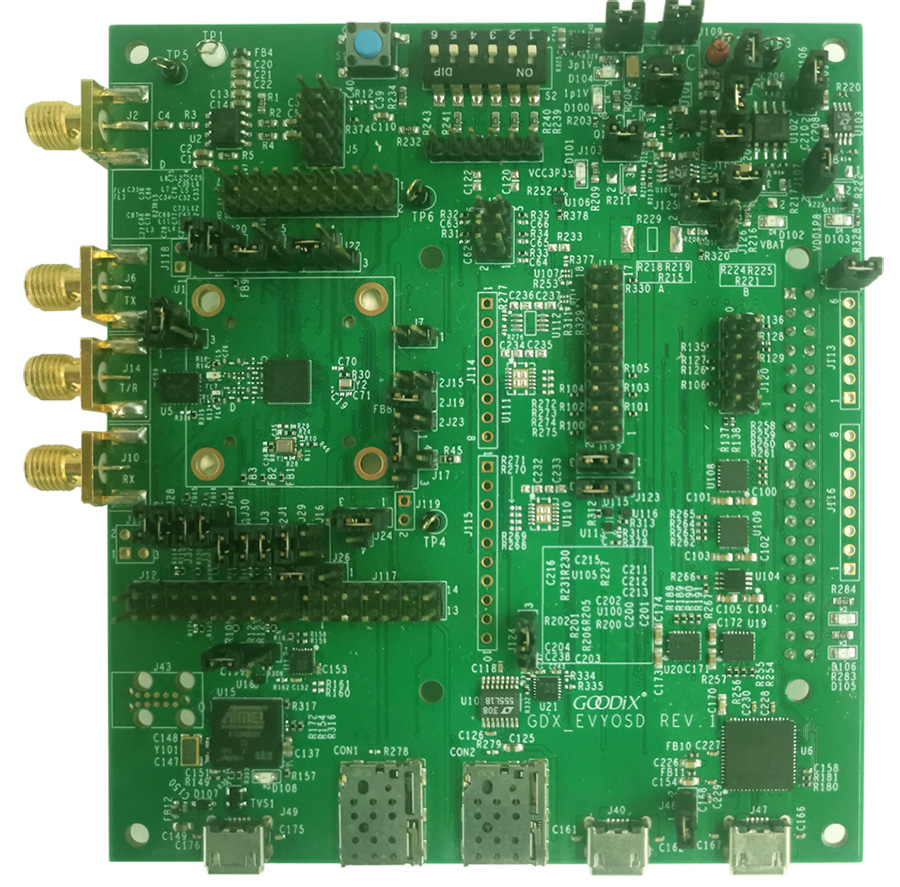

The GR851x Pro Kit is a development platform based on the GR851x chip (supporting NB-IoT).

Read More

Software & Tools

GR851x SDK

Software development kit for GR851x series chips, universal SDK, compatible with rich AT commands and OpenCPU customer application development (water meter, gas meter, etc.)
Read More

GProgrammer for NB-IoT

A FLASH programming tool, including firmware download, firmware signing, and eFuse operation, is used in the development and debugging stage
Read More

GChipConfig

Chip configuration tool, which can be used to configure chip parameters (IO voltage, crystal capacitance, etc.), SDK application parameters and communication parameters.
Read More

Hermes

Log tool, used to record, view and analyze the logs generated by the entire NB-IoT chip (customer code, application SDK and communication core), support viewing by category, such as user code log, SDK log and communication (NAS, RCC, MAC, PHY, etc.) log
Read More

GNavigator

Serial port tools, including sending and receiving AT commands, statistics of terminal measurement values, statistics of downlink UDP rates, etc.
Read More

GNBMT

Production test tool, including firmware download, chip calibration, and non-signaling tests.
Read More

GRFTool

RF calibration and non-signaling test debugging tools
Read More

Documentation

Name Rights Description Version Date
GR851x Product Brief For Public V1.3 2022-06-10
GR851x Datasheet Secure File, Please Contact Sales V1.7 2021-10-13
GR851x AT Command User Manual Secure File, Please Contact Sales V2.3 2022-04-27
GR851x Hardware Design Guidelines Secure File, Please Contact Sales V1.7 2022-02-25
GR851x OpenCPU User Guide Secure File, Please Contact Sales V1.3 2021-08-03
GR851x FEM & PA QVL Selection Guide Secure File, Please Contact Sales V1.1 2021-04-15
GR8513NMBIN Pro Kit Board Secure File, Please Contact Sales V1.3 2022-06-10
GR851x OpenCPU API Reference Secure File, Please Contact Sales V1.8.2 2022-07-12
GR851x Reliability Test Report Secure File, Please Contact Sales V2.0 2021-12-20
GR851x Power KPI Test Report Secure File, Please Contact Sales V1.7 2021-12-07
GR851x AP Functional Test Report Secure File, Please Contact Sales V1.3 2021-06-30
