As a dedicated supporting tool for PLT, GRPLT includes the OrderSetting work order generator, the GRPLT mass production tool, and example code for the secondary development of GRPLTLibrary demo.

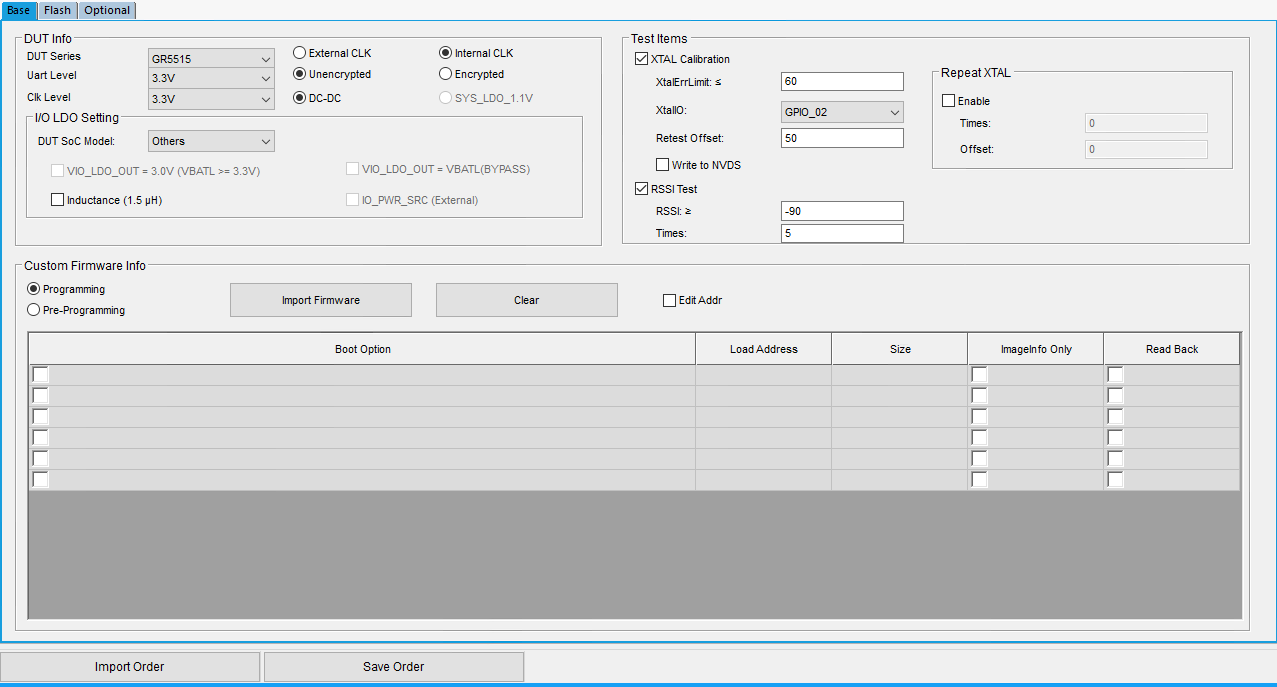

Users can first configure mass production information and generate corresponding work orders using OrderSetting, then import these work orders into GRPLT. Once the DUT is connected to PLT, firmware and flash data programming, crystal calibration, and functional testing are completed through GRPLT on a PC.
Firmware and resource configuration
Bluetooth address configuration
NVDS parameter configuration
Supports internal/external Flash
Crystal calibration parameter configuration
RSSI test parameter configuration
Synchronous test with up to 16 DUTs connected to one PLT
Optimized work order configuration features:
The "RSSI Test" option is unchecked by default.
The "Import Firmware" operation only supports selecting folders.
Fixed an issue where the PLT could not detect the DUT during production testing when the DUT is powered by an external source.
The erase operations for Boot Info and Image Info will only be performed when the work order is configured as a programming work order and the number of imported user firmware files is not zero, ensuring that no modifications are made to the Flash when only performing XO calibration.
Fixed occasional firmware programming failures and recognition failures with GR5331DEBI.
Fixed an issue where the tool would exit unexpectedly on PCs missing required dependency libraries.
Added error-proofing for reading XML files.
Adapted to PLT 7.0.
Added example code for secondary development and updated the naming of secondary development interfaces.
Fixed known issues.
Added production test data verification for GR533x and GR5405 SoCs.
Added support for GR5331DEBI.
| Name | Rights Description | Version | Date |
|---|---|---|---|
| GRPLT User Manual | For Public | Rev.2.9 | 2025-04-25 |
| GRPLTLibrary User Manual | For Public | Rev.1.0 | 2025-04-25 |
